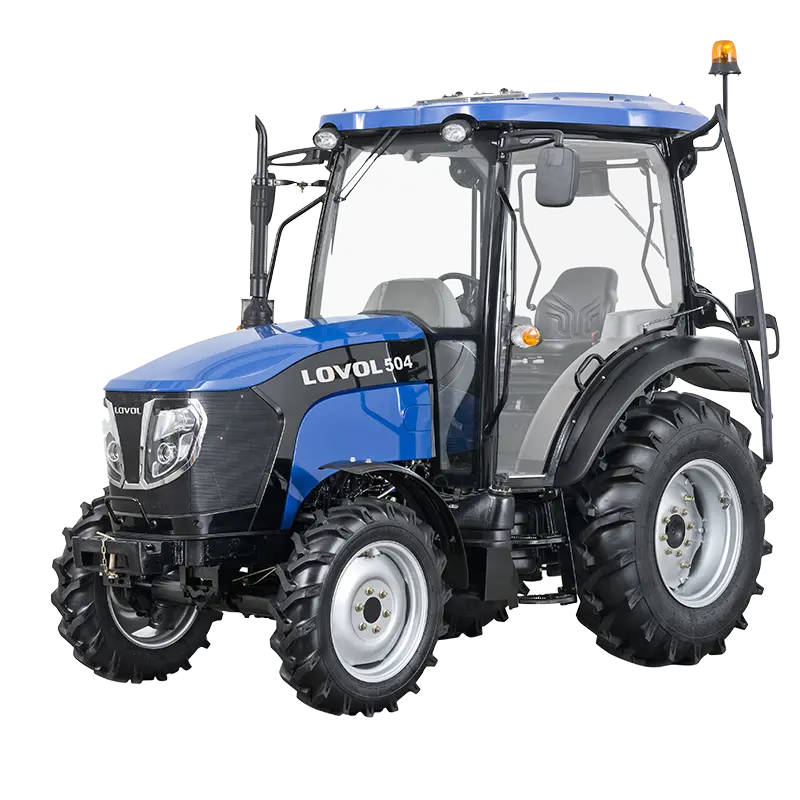

TB504 Premium Utility Tractor
A high-performance multi-role tractor offering exceptional versatility for modern small farms and specialized agricultural operations.
- Dual Engine Options: Choose between a rugged 4-cylinder Euro II mechanical engine or advanced Euro V-compliant Doosan D18/D24 powerplants
- Professional-Grade Transmission: 12F+12R synchronized main gearbox with mechanical shuttle for precision control
- Enhanced Capability: Heavy-duty design supports demanding implements and continuous operation
Ideal For: Commercial small farms, organic operations, specialty crop production, and agricultural contracting work
Specifications
| Engine Model | Doushan D18/Doushan D24/Xinchai A498BT |
| Horsepower(hp) | 50 |
| Emission Standard | Ⅱ/Euro ⅢA/Euro Ⅴ/EPA4 |
| Gear Quantity | 8+8/12+12 |
| Gearbox Shift Mode | Sleeve Shifting/Synchronizer Shifting |
| Structure Weight(kg) | 2320(ROPS)/2525(CAB) |
| Speed Range | 2.61-33.59 |
| Hydraulic Output Flow(L/min) | 22/32/41 |
| Wheel Base(mm) | 1990 |
| Front Wheels | 8.3-20 |
| Rear Wheels | 12.4-28 |
